Control Panel: How to set up a Vision location

avatar

Written by NSoft Vision

Updated

Follow this guide for steps on adding a new location into your Vision system and establishing a connection with your Local Vision Server (LVS).

How to create a new location in Vision

Follow these steps to create a new location in Vision (see Figure 1):

  1. The Control Paneltune_FILL0_wght300_GRAD0_opsz20.png is located in the bottom right corner of the starting interface. This is where you'll manage all your locations and settings.
  2. In the Control Panel menu, click on the Locations tab. This will bring up a list of all your current locations.
  3. To add a new location, click the baseline_add_circle_outline_black_18dp.png "+" sign located in the bottom right corner.

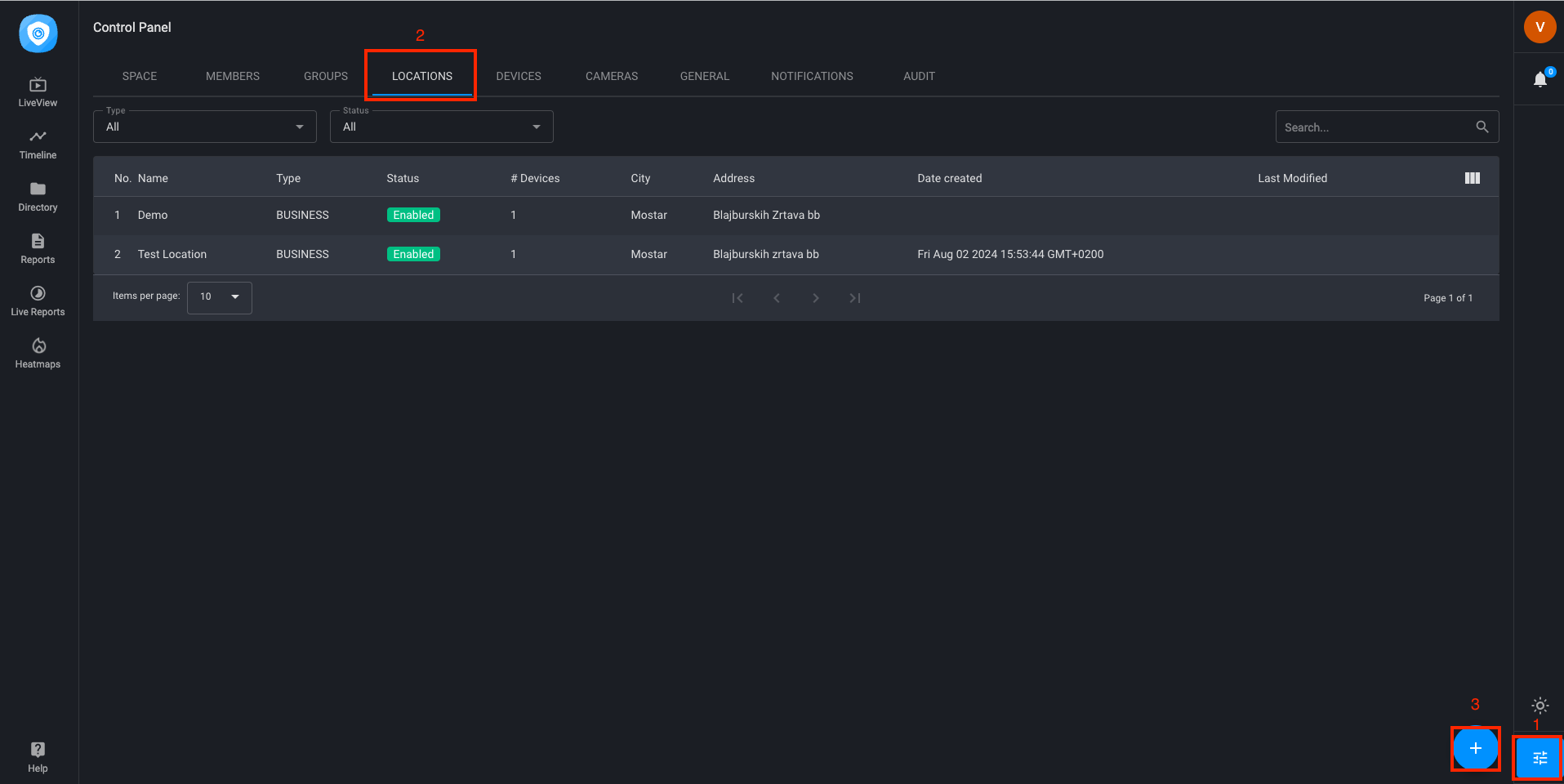

Figure 1 – Adding a location.png

Figure 1 – Adding a location

Once you click the "+", the Add Location window will open. Enter the required information and click Save. When a location is added, a unique location ID is assigned automatically (see Figure 2):

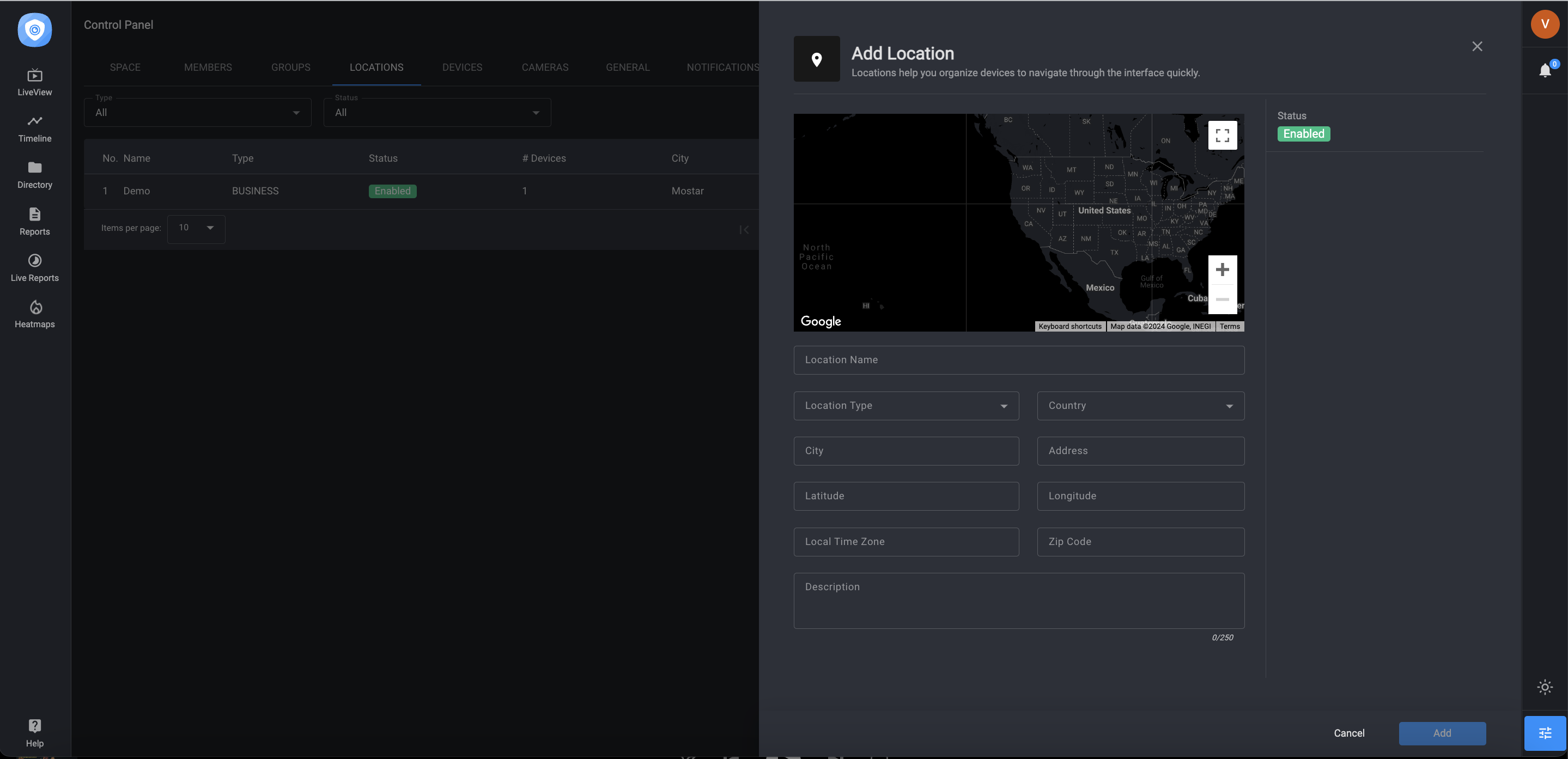

Figure 2 – Enter Location info.png
Figure 2 – Enter Location info

Connection Code

After creating a new location in the Control Paneltune_FILL0_wght300_GRAD0_opsz20.png, search for the created location in the Locations tab (Control Panel → Locations).
Find the "Connection Code" and insert it at the end of the installation process.

Figure 3 – Connection code.png
Figure 3 – Connection code

IMPORTANT: Connection code expires after two hours due to safety measures. If that’s the case, go back to the location you previously created and generate a new code.

Worker Service

To check the status of your worker services, begin by opening the Vision graphic user interface. From there, navigate to the Control Panel menu. Within the Control Panel, select the Locations tab and double-click on the location you've recently added. This will lead you to the 'Workers' section.

check the status of your workers, open the Vision graphic user interface. From there, navigate to the Control Panel menu. Within the Control Paneltune_FILL0_wght300_GRAD0_opsz20.png, select the Locations tab and open the location you've recently added. This will lead you to the 'Workers' section.

Worker is a service that finds and processes camera streams. To proceed with installation and adding cameras, ensure that the worker service is marked with a green dot next to it.

The number of preview workers you can have is determined by your server specifications. Essentially, the more workers you have, the more cameras you can process per location (see Figure 4).

Figure 4 – Worker service.png
Figure 4 – Worker service
